Hex Washer Head Concrete Screw For Steel And Concrete Connection

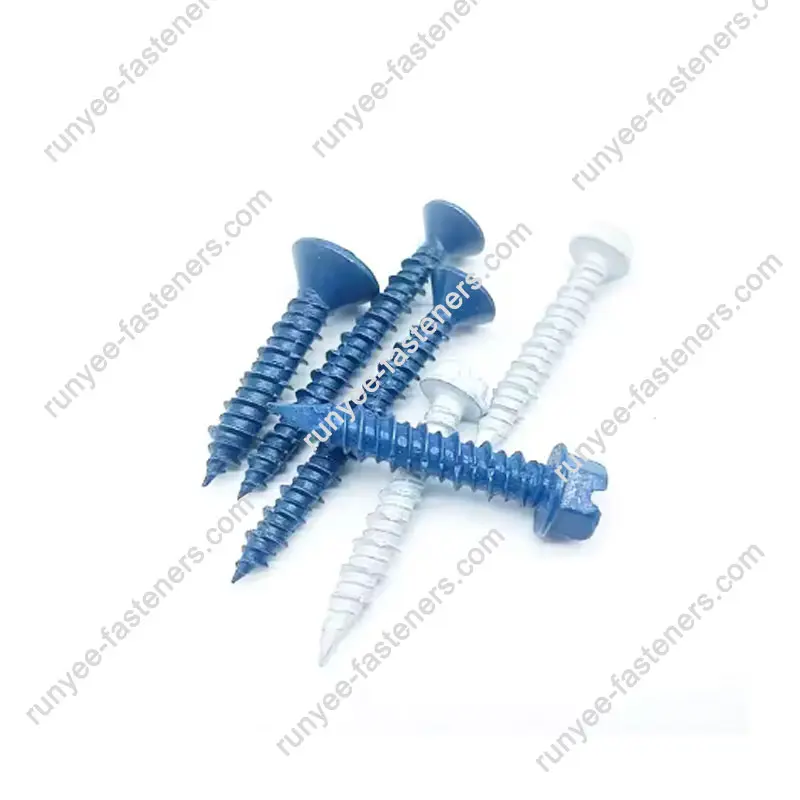

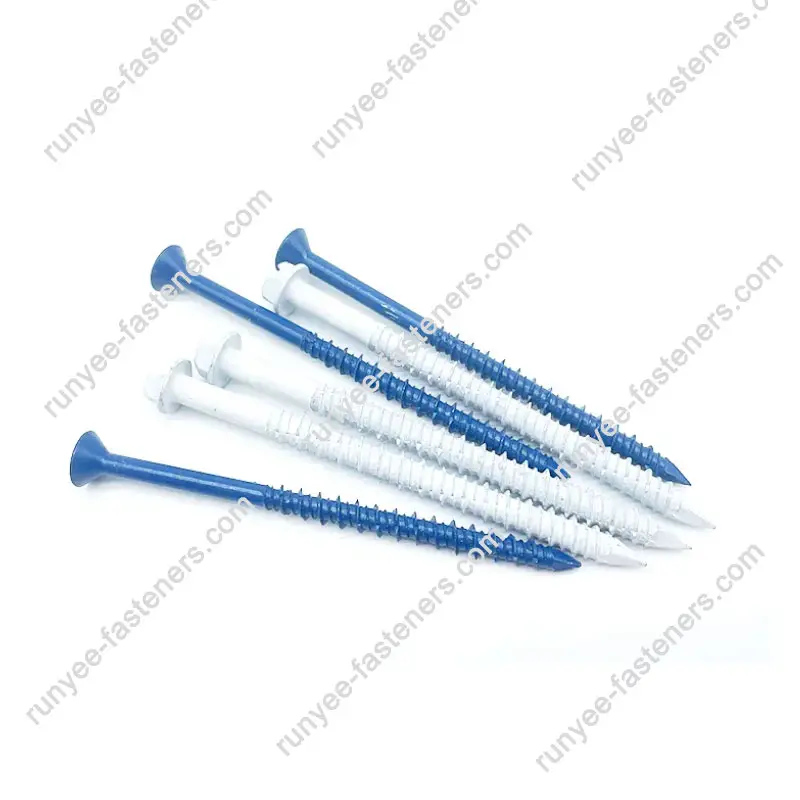

Runyee factory offers Hex Washer Head Concrete Screw For Steel And Concrete Connection, designed for projects requiring wood or fixture attachment into concrete, masonry, and block. The hex washer head provides a large bearing surface, distributing clamping force evenly to prevent pull-through in softer materials. The diamond-point tip allows precise starting in pre-drilled holes, while the hi-low thread with three cutting lines creates internal threads in the base material without generating radial expansion pressure—eliminating the cracking risk common with traditional expansion anchors. The blue Ruspert coating is a multi-layer system (zinc phosphate + epoxy + topcoat) that delivers 500 to 1500 hours of neutral salt spray resistance, making it suitable for both indoor and outdoor exposures. This equipment supports a wide range of applications, including window sill attachment, handrail fixing, door frame anchoring, and structural connections where steel meets concrete. Production covers head styles (flat, cylinder, hex) and drives (slotted, unslotted, Phillips) with full in-house heat treatment and coating. Quality checks include thread profile verification, hardness mapping, and torque testing to ensure every batch meets construction-grade performance standards.

Dimensional Specifications and Coating Data

The following table lists verified parameters for the Hex Washer Head Concrete Screw For Steel And Concrete Connection, based on production records and third-party validation.

The diamond-point tip geometry reduces walking during installation, allowing accurate placement even in dense concrete. The three cutting lines on the thread profile improve chip removal and reduce installation torque compared to standard thread designs.

Installation Guidelines and Substrate Preparation

Proper installation of the Hex Washer Head Concrete Screw For Steel And Concrete Connection requires following a set of verified steps to achieve rated holding values.

• Pre-drilling: Use a carbide-tipped drill bit matching the nominal diameter minus 0.2mm. Drill depth must exceed anchor length by at least one full diameter to accommodate dust accumulation.
• Hole cleaning: Remove dust and debris using compressed air or a manual pump. Residual particles reduce thread engagement and pull-out resistance.
• Driving method: Use a torque-controlled impact driver or drill with a slotted/Phillips bit as required. Recommended driving speed: 800–1200 RPM to prevent overheating and thread stripping.
• Torque limits: For 1/4” diameter in solid concrete (C20/25), the recommended installation torque is 8–12 N·m. Exceeding this may damage the drive recess or strip the thread in softer substrates.
• Substrate types: Suitable for solid concrete, brick, hollow block, and stone. For hollow materials, the anchor engages with the cavity walls; load values should be confirmed by site-specific testing.

This equipment does not rely on expansion forces, so edge distances can be reduced to 2x diameter without causing blow-out, unlike mechanical expansion anchors that require larger edge clearances.

Ruspert Coating Performance and Selection

The blue Ruspert coating applied to this equipment is a three-layer system that provides exceptional corrosion protection and aesthetic consistency for exposed applications.

• Base layer: Zinc phosphate conversion coating – improves adhesion and provides initial sacrificial protection.
• Intermediate layer: Epoxy resin – acts as a barrier against moisture and chloride ingress.
• Topcoat: Polyurethane-based finish in blue – UV-stable, abrasion-resistant, and provides color consistency across batches.
• Salt spray performance: Depending on coating thickness (8–15 μm), the product achieves 500 to 1500 hours of neutral salt spray resistance per ASTM B117, suitable for coastal and industrial environments.
• Alternative coatings: White Ruspert is also available for projects requiring a different visual appearance while maintaining similar corrosion protection levels.

Thickness is monitored in-line using X-ray fluorescence gauging to ensure uniform coverage over the head, thread flanks, and diamond point. This prevents premature failure from coating voids in critical stress areas.

Quality Control and Batch Traceability

The manufacturing process for the Hex Washer Head Concrete Screw For Steel And Concrete Connection is governed by a multi-stage inspection system aligned with ISO 9001:2015 requirements.

• Raw material verification: Each coil of C1022A wire undergoes optical emission spectrometry to verify carbon content (0.20–0.25%) and manganese levels. Tensile tests confirm ductility before cold heading.
• Cold heading and thread rolling: In-process checks every 30 minutes using optical comparators and thread gauges to monitor major diameter, pitch, and cutting line geometry.
• Heat treatment: Continuous mesh-belt furnaces with controlled atmosphere. Surface hardness (HV 530-560) and core hardness (HV 380-420) are verified using Vickers testers on samples from each batch.
• Coating thickness: Non-destructive X-ray fluorescence measurement is performed on 5% of each batch, targeting 8–15 μm total thickness.
• Pull-out testing: Destructive tests are conducted on a universal testing machine for each production lot, with recorded values exceeding 1100 N/mm² tensile strength.

All inspection records are retained digitally with batch-specific traceability, allowing for root-cause analysis in the event of field performance inquiries. This level of documentation is standard for construction-grade fasteners used in load-bearing applications.

Application Scenarios and Structural Uses

This product is widely specified for connections where steel members or fixtures are attached to concrete or masonry substrates. The hex washer head provides a large clamping area, reducing the risk of pull-through in softer materials.

• Window sill anchoring: Secures aluminum or PVC profiles to concrete sills with flush finish, using the washer head to distribute load over a wide area.
• Interior and exterior handrails: Provides secure attachment of steel or wood handrails to concrete walls, meeting safety load requirements without the need for large expansion anchors.
• Steel door frames: Fastens metal frames to concrete floor or wall substrates; the hex head allows for easy tightening with a standard socket or wrench.
• Joint flashing and cladding: Used to attach metal flashing or exterior cladding to masonry walls; the Ruspert coating prevents corrosion at the interface between dissimilar metals.
• Equipment mounting: Secures electrical panels, HVAC brackets, and lighting fixtures to concrete ceilings or walls where vibration resistance is required.
• Temporary works: The removable nature of the screw allows for staging and scaffolding attachments that can be dismantled without damaging the substrate.

In each case, the equipment reduces installation complexity compared to expansion bolts, as it eliminates the need for setting tools or torque-limited wrenches that are required for wedge anchors.

Packaging and Supply Chain Logistics

The supplier provides flexible packaging solutions to match construction project scales, from small-site deliveries to large container shipments for international distribution.

• Small box packing: Custom-printed cartons containing 50, 100, or 200 pieces, suitable for retail distribution or site-specific kit orders.
• Bulk packing: Heavy-duty corrugated cartons or reinforced PP woven bags, palletized with stretch wrap and labeled with size, quantity, and batch code.
• Wood cartons: Available for export shipments requiring additional mechanical protection during sea freight.
• Minimum order quantity: 1000 kilograms per single diameter. A standard 20-foot container can accommodate a mix of up to 25 different sizes and head/drive combinations.
• Lead time: Standard production is 20–25 days from order confirmation, with expedited options available for urgent construction schedules.

Monthly production capacity of 1,200 tons ensures stable supply even for large-scale infrastructure projects. All pallets are designed for forklift handling and are stackable for efficient container loading.

Frequently Asked Questions

What makes the diamond point design different from a standard tip?
The diamond point has a faceted geometry that centers the screw in the pre-drilled hole, reducing walking or skidding during initial engagement. This is especially important when working in hardened concrete where precise hole placement is critical. The point also displaces dust rather than pushing it to the bottom of the hole, improving thread engagement.

How does the hex washer head improve installation reliability?
The hex washer head combines a hex drive for torque application with an integral washer that distributes clamping pressure over a broader area. This prevents the head from embedding into soft materials and reduces the risk of loosening under vibration. The washer also acts as a built-in load-bearing surface, eliminating the need for separate washers.

Can this product be used in outdoor, exposed environments?
Yes, the blue Ruspert coating is specifically formulated for exterior use. With 500 to 1500 hours of salt spray resistance, it performs well in coastal zones, industrial areas, and regions with freeze-thaw cycles. For extreme conditions, white Ruspert or alternative coatings can be specified.

Is pre-drilling always required, or can it self-drill?
Pre-drilling is mandatory. This equipment does not have a self-drilling tip; it relies on a pilot hole to guide the diamond point and the hi-low thread. Attempting to drive it without pre-drilling will result in thread damage or product failure. The hole diameter should be precisely matched to the screw diameter for optimal holding strength.

What is the service temperature range for this equipment?
The C1022A steel retains mechanical properties between -40°C and +80°C. The Ruspert coating is stable up to 120°C without degradation. For applications above 80°C, please consult the technical team for alternative coating or material options.

Can the screw be removed and reused?
For temporary applications, the screw can be removed and reinstalled provided the threads remain undamaged. However, the holding strength may be reduced on reinstallation because the thread cuts are already formed in the concrete. For permanent structural connections, replacement is recommended.

Manufacturing Advantages and Operational Reliability

The factory’s production ecosystem provides distinct advantages in terms of quality consistency, delivery reliability, and technical support for the Hex Washer Head Concrete Screw For Steel And Concrete Connection.

• Integrated production chain: All critical operations—wire drawing, cold heading, thread rolling, heat treatment, and coating—are performed in-house. This eliminates supply chain bottlenecks and ensures full process control.
• ISO 9001:2015 certification: The quality management system is externally audited annually, covering all aspects from supplier selection to final dispatch. Documentation is maintained for traceability across all production stages.
• Technical engineering support: The in-house team provides recommendations for hole sizing, torque settings, and material compatibility. This service is available for both standard and custom specifications.
• Flexible batch production: With 350+ machine sets and a monthly output of 1,200 tons, the supplier can accommodate both standard stock orders and customized requirements (special lengths, head styles, coatings).
• Global compliance: Products meet relevant ANSI and DIN standards, with test reports available upon request. The supplier has experience exporting to Europe, the Americas, the Middle East, Africa, and Southeast Asia.

This combination of in-house manufacturing, certified quality controls, and responsive technical support makes the supplier a reliable source for construction fasteners in demanding structural applications.
