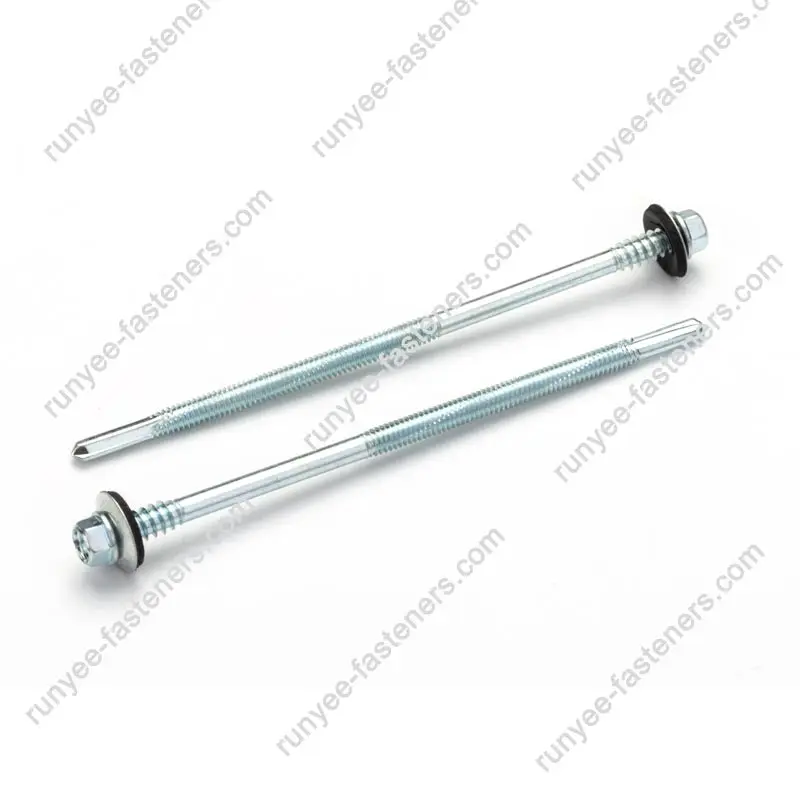

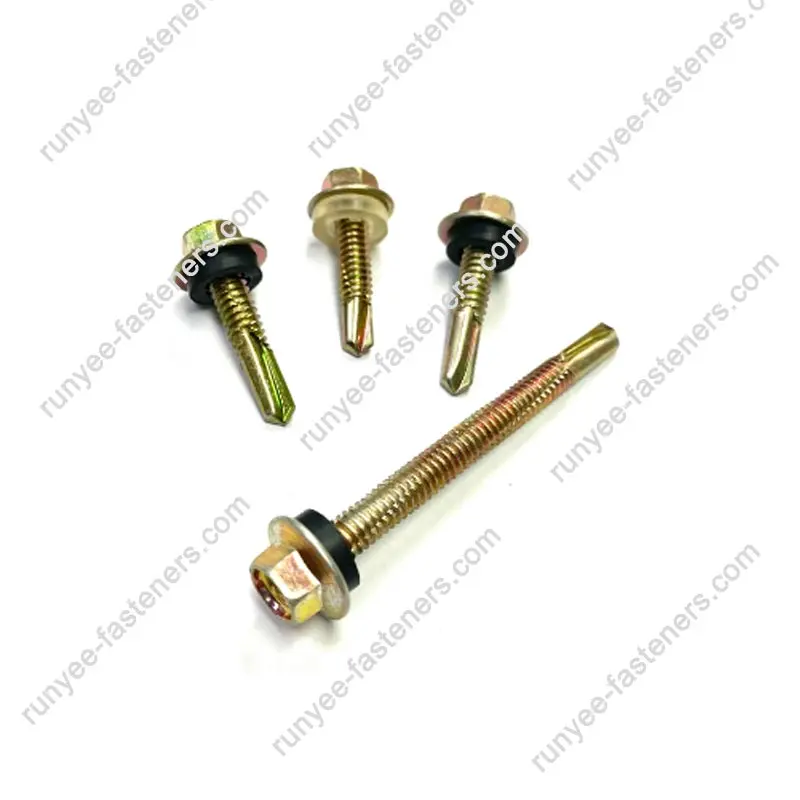

Double Thread Self Drilling Screw For Metal Roofing System

Runyee stands out as an established industrial supplier and manufacturer delivering bulk shipments of the heavy-duty Double Thread Self Drilling Screw For Metal Roofing System. This professional hardware solution features an advanced extended drill tip that penetrates tough structural members without pre-punched holes. Equipped with a premium bonded EPDM washer, it creates a long-term watertight seal that prevents water ingress and atmospheric corrosion. Our advanced factory production lines ensure tight dimensional tolerances and uniform thread mapping across every batch.

Technical Matrix and Core Specifications

Engineering compliance and structural safety require exact dimensional alignment. This manufacturing data guide details the precise configurations and material properties verified by our internal quality laboratory.

Engineering Category	Verified Manufacturing Standards
Base Metal Material	Hardened Carbon Steel C1022A
Penetration Point	No.5 extended self-drilling point
Head Varieties	Hex, Indented hex washer, Hex flange, Hexagon
Drive Interfaces	Unslotted, Slotted, Phillips
Dimensional Matrix	Diameter: 3.5mm—6.3mm | Length: 9.5mm—280mm
Thread Varieties	Standard, Fine Thread, Coarse Thread, Full Thread, Half Thread
Sealing Components	Gray EPDM, Black EPDM, PVC, Rubber, Plastic bonded washers
Surface Plating	Zinc Plated, Dacromet, Ruspert, Nickel, Magni, Phosphated

Every piece of specialized plant equipment is calibrated to roll precise outer and inner thread patterns. This careful balance ensures the Double Thread Self Drilling Screw For Metal Roofing System establishes optimal pull-out resistance and permanent clamping hold within heavy industrial framing.

Metallurgical Processing and Quality Architecture

High-vibration external environments require fasteners built with rigorous internal structural properties. Our production facility relies on systematic mechanical execution to maintain structural integrity across mass operations.

Wire Rod Evaluation

Manufacturing starts strictly with verified C1022A carbon steel material. Each batch undergoes careful physical screening to ensure structural consistency before heading to the automated forming machinery, removing raw material anomalies early.

Cold Heading and Dual Thread Formation

Advanced high-speed mechanical equipment creates the cold-formed hex head structure and rolls the specific double-thread profile. The specialized upper thread locks the outer cladding sheet tight, while the lower thread forms a permanent grip within the primary support beams, preventing oil-canning and sheet dimpling.

Controlled Heat Treatment

Continuous atmospheric hardening systems treat the carbon steel to bring the case hardness and core ductility to the exact required levels. This step ensures that the No.5 drill point holds its cutting edge and pierces heavy metal panels without cracking or buckling.

Protective Surface Coatings

To withstand prolonged weathering, we apply uniform defensive layers such as Ruspert, Dacromet, or multi-layer Zinc. These finishes undergo standard salt spray assessments to ensure long-term defense against chemical degradation and environmental corrosion.

Industrial Performance Areas and Structural Utility

Modern commercial roof installations depend on robust components that can easily link multiple physical material strata together while keeping an absolute seal against outside environmental elements.

Heavy Steel Support Integration

The primary role of this Double Thread Self Drilling Screw For Metal Roofing System is linking exterior profiles directly to thick structural steel support frameworks. The extended No.5 self-drilling tip cuts clean holes through heavy purlins in a single process, completely doing away with secondary pre-drilling labor on site.

Color Steel Structural Cladding

In large warehouse environments and simple metal buildings, keeping a firm exterior holds priority. The double-thread pattern stops the outer metal skin from moving or sinking into the underlying insulation layer under wind load pressures.

Weatherproof Fluid Isolation

When properly driven by industrial setting tools, the integrated bonded EPDM rubber washer expands evenly against the panel surface. This barrier completely shuts out moisture, shields the fast-spinning threads from water contact, and protects the inner structural materials from rust.

Rigorous Multi-Phase Inspection Protocols

To verify compliance with international commercial builds, our technical team executes strict quality audits across every stage of the manufacturing cycle.

• Geometric Assessment: Precision micrometer gauges continuously map thread pitch, root diameter, and head dimensioning during live machine cycles.
• Mechanical Piercing Tests: Specialized torque testing equipment measures the exact speed and downward pressure needed to pierce standard test metal sheets, ensuring peak field speed.
• Microscopic Hardness Profiling: Advanced testing systems confirm that case and core hardness match required specifications, providing high shear resistance.
• Plating Layer Verification: Electronic measuring tools check that the protective coating thickness remains perfectly uniform across all thread faces.

Logistics, Packaging, and Ordering Parameters

We provide stable, reinforced packaging arrangements designed to protect product integrity during international sea freight and long storage periods on construction sites.

• Minimum Order Volume: 1,000 kilograms per individual size specification.
• Container Optimization: A single ocean container can carry a maximum combination of up to 25 distinct sizes utilizing bonded washers together.
• Industrial Bulk Packaging: Secure packing inside thick cardboard boxes or woven bags stacked on heavy-duty wooden pallets.
• Custom Small Box Packaging: Optional small box configurations organized into master transit cartons based on local distribution preferences.
• Volume Pricing Adjustments: Structured cost reductions and preferential pricing agreements apply to high-volume industrial supply agreements.

FAQ

What is the distinct function of a double-thread fastener profile?

The double-thread design employs two separate thread sections with differing outer diameters. The upper thread locks the outer face plate securely in position, which prevents the metal skin from collapsing downward into the insulation core when walked on or loaded.

Why is C1022A carbon steel selected for heavy-duty metal roofing?

C1022A grade carbon steel responds exceptionally well to modern heat-treating processes. This allows the finished product to develop a very hard drill point that can cut through thick steel plates while keeping a tough core that resists shear stress.

How does the EPDM bonded washer block long-term corrosion?

The premium synthetic EPDM rubber resists breakdown from ozone exposure, UV rays, and temperature changes. It forms a tight seal that stops moisture from entering the hole, preventing galvanic action and rust from forming on the fastening parts.

Can this fastener line handle varied head and drive preferences?

Yes. The manufacturing line easily handles a variety of head choices, including hex, indented hex washer, and flange head options, paired with unslotted, slotted, or Phillips drives to fit specific installation equipment.

Why Choose Us

Our company unites heavy industrial manufacturing output with rigorous quality oversight systems. Operating with a reliable monthly output capacity of 1,200 tons from our 13,000m² factory space, we maintain stable product flow lines for major commercial distribution networks worldwide. With over 350 sets of advanced machineries run by an experienced technical team, we deliver high dimensional accuracy and on-time shipment schedules. Every single step—from steel wire analysis to final surface treatment—follows strict ISO 9001 standards, ensuring that our products provide ultimate safety and holding power on every commercial site.

As your long-term industrial manufacturing partner, Runyee is dedicated to advancing structural safety across the global construction market with engineering precision and uncompromising quality control. We guarantee that our heavy-duty Double Thread Self Drilling Screw For Metal Roofing System delivers optimal mechanical strength and dependable weather isolation under the most demanding building conditions.
