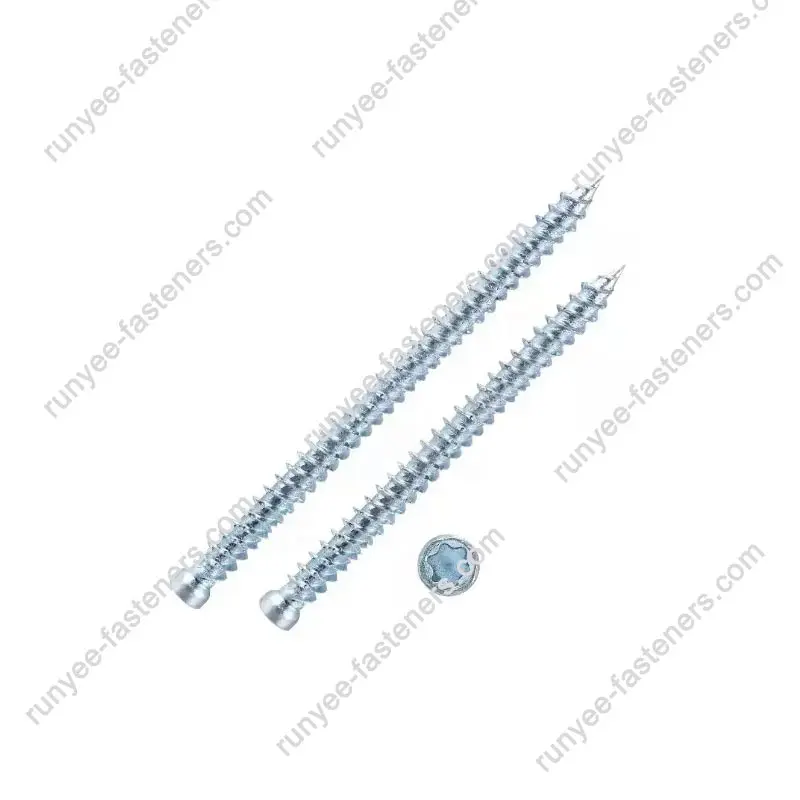

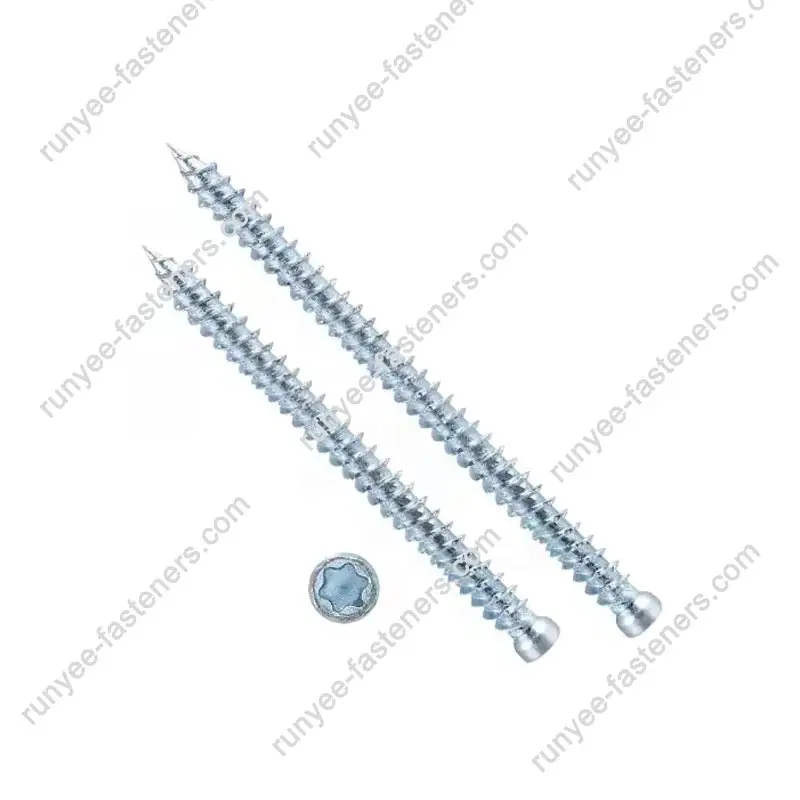

Anti Crack Concrete Screw Anchor With Torx Drive

Choose Runyee as your factory supplier for the Anti Crack Concrete Screw Anchor With Torx Drive. Manufactured from hardened C1022A carbon steel using 350 sets of advanced machinery, this heavy-duty mechanical anchor directly taps into masonry substrates without causing expansion stress. It features standard or hi-low threads and protective finishes like Ruspert, optimizing structural security.

Technical Parameters and Specifications

Selecting the correct configuration is critical for ensuring structural integrity and joint longevity. The physical properties and dimensional ranges of this product lines are optimized for heavy-duty industrial anchoring.

Parameter	Specification Range / Type
Material Grade	Hardened Carbon Steel C1022A / C1022
Head Style Options	Flat Head, Cylinder Head, Hex Head
Drive Configuration	Torx T30
Thread Profiles	Standard Thread, Hi-Low Thread
Diameter Range	M2.5 to M8.0 (Specific: 7.5mm)
Length Available	42mm to 282mm (Maximum up to 300mm)
Surface Treatment	Zinc Plated, Phosphated, Dacromet, Ruspert, Nickel
Compliance Standards	DIN, ANSI

Mechanical Advantages and Thread Dynamics

The mechanical performance of these heavy-duty fasteners relies heavily on their metallurgical composition and thread geometry. Hardened carbon steel provides high tensile and shear strength, preventing deformation when encountering dense aggregates within masonry. The sharp, specialized thread configuration is engineered to slice directly into base materials, creating a form-fitting mechanical interlock rather than relying on expansion forces.

Integrating the Anti Crack Concrete Screw Anchor With Torx Drive into critical structural joints ensures stress-free mechanical interlocks. Traditional expansion shields exert continuous outward pressure on the surrounding base material, which often leads to spalling, cracking, or edge breakouts in masonry structures. By contrast, this product creates close-tolerance internal threads without expansion stress, preserving the structural integrity of thin slabs, masonry corners, and older brick foundations.

Torque Transmission Efficiency

The Torx T30 drive recess offers substantial performance advantages over traditional cross-recess or slotted drives. The six-point star geometry distributes rotational forces evenly across the drive walls, eliminating cam-out effects and minimizing tool wear. This efficient energy transfer allows installers to apply high installation torque smoothly, guaranteeing complete engagement and solid seating in dense substrates.

Thread Geometry Selection

The availability of dual-thread designs allows for optimization across different substrate densities. Standard thread options deliver continuous engagement in dense poured foundations, while the hi-low thread configuration alternates between high and low thread heights. This alternating profile displaces base materials more effectively in softer substrates, maximizing pull-out resistance while minimizing driving resistance.

Installation Framework and Substrate Suitability

Achieving rated anchoring capacities requires adherence to precise field installation protocols. Because this equipment creates its own mating thread, hole preparation determines the ultimate load-bearing performance of the anchor.

• Pre-Drilling: A rotary hammer drill must be used to create a pilot hole matching the core diameter of the anchor. Correct depth control must be maintained to provide sufficient clearance for residual dust.
• Hole Clearance: Debris, dust, and pulverized substrate must be thoroughly cleared from the hole using a blow-out pump or vacuum. Residual powder can compact at the base of the hole, preventing full anchor engagement.
• Driving Sequence: Using a T30 drive tool, the anchor is driven directly into the pre-drilled cavity. The sharp leading threads cut clean mating tracks into the substrate until the head sits flush against the fixture surface.

Approved Base Materials

This anchoring equipment demonstrates versatile performance across a wide range of standard architectural and structural substrates, including:

• Dense poured structural concrete and reinforced foundations.
• Solid clay masonry and structural brick walls.
• Hollow core concrete blocks and architectural brickwork.
• Aerated concrete blocks and low-density masonry panels.
• Exterior window sills and perimeter structural thresholds.

Industrial Application Fields

Due to its high holding capacity and rapid installation speed, this Anti Crack Concrete Screw Anchor With Torx Drive is widely deployed in structural, architectural, and mechanical fit-out projects globally.

Fenestration and Architectural Enclosures

A primary application field is the permanent mounting of heavy exterior window installations and metal door frames. The vibration resistance and reliable anchoring strength ensure frames remain perfectly aligned under wind loads and repeated cycling. It is similarly utilized in securing storm shutters, screened enclosures, and perimeter thresholds where edge distances are often limited.

Interior Infrastructure and Outfitting

In interior commercial construction, these anchors provide reliable support for interior hand rails, heavy interior lighting fixtures, and joint flashing assemblies. The clean aesthetic of the cylinder and flat head options allows for flush or countersunk finishes that do not interfere with subsequent architectural claddings.

Manufacturing Standards and Quality Verification

High-volume industrial fastening demands absolute consistency from batch to batch. Production defects can lead to job site failures, driving up field labor costs and delaying project handovers.

Metallurgical and Process Inspection

Manufacturing protocols involve multiple technical inspection touchpoints starting from incoming steel wire material assessment. The production facility utilizes advanced cold-heading and thread-rolling machinery to maintain strict dimensional tolerances across all batches. Advanced heat treatment processes modify the carbon structure of the steel, ensuring the core retains ductile strength while the thread surfaces achieve the high hardness necessary to tap abrasive masonry surfaces.

Surface Coating Verification

Environmental exposure dictates the selection of surface treatments. Industrial electroplating and chemical coating processes provide uniform layers of zinc, phosphate, Dacromet, or Ruspert. These coatings undergo testing to ensure long-term resistance to atmospheric moisture, galvanic corrosion from aluminum frame contact, and chemical alkalinity present in green masonry materials.

Supply Chain and Logistic Layout

To support large-scale distribution networks and industrial projects, logistical operations are structured around high-volume manufacturing output and optimized container loading profiles.

Bulk Container Management

To optimize shipping efficiency and reduce inbound logistics overheads, standard export configurations are organized around full container shipments. Up to 25 distinct dimensional sizes of this product can be consolidated within a single container, allowing distribution warehouses to maintain a diverse inventory without over-extending storage capacities for a single size category.

Industrial Packaging Configurations

Packaging options are tailored to match various downstream supply chain requirements, preventing product damage during multi-modal international transit. Available configurations include:

• Small box commercial packaging for immediate retail distribution.
• Bulk carton packing for high-volume commercial construction sites.
• Reinforced bulk bag systems for industrial assembly operations.
• Heavy-duty wood pallet cartons to ensure stability during maritime transit.

Frequently Asked Questions

Why does this product eliminate the need for traditional plastic expansion anchors?

Traditional anchors rely on friction created by expanding a sleeve against the walls of a drilled hole, which places continuous internal stress on the substrate. This product cuts clean internal threads directly into the masonry base, distributing structural loads along the entire length of the thread helix without generating outward expansion forces, making it ideal for edge installations.

Which coating option is recommended for external architectural frameworks?

For external structural applications, window frame mounting, or coastal environments exposed to high moisture, Ruspert or Dacromet multi-layer coatings offer superior corrosion resistance compared to standard zinc plating, protecting the structural integrity of the joint over extended life cycles.

Can these fasteners be extracted and reused in the same anchoring point?

Because these anchors cut a permanent internal thread into the masonry substrate, they can be backed out easily using a T30 Torx drive for structural modification or building remediation. However, re-installation into the same hole must be done carefully to avoid stripping the pre-cut concrete threads.

Strategic Partnership Benefits

Operating a massive production footprint that spans a 13,000 square meter factory area equipped with more than 350 sets of advanced machineries, the manufacturing plant maintains an output capability of approximately 1200 tons per month. This vast capacity guarantees that high-volume supply contracts are fulfilled punctually, mitigating risks associated with supply chain disruptions on major global infrastructure projects.

As a dedicated manufacturing facility, Runyee coordinates bulk exports of the Anti Crack Concrete Screw Anchor With Torx Drive to meet strict corporate schedules. Our facility coordinates strict ISO 9001 quality management procedures alongside customized packaging solutions, providing stable mechanical performance, competitive pricing structures, and expert technical support. Let Runyee serve as your long-term manufacturing partner in China, providing robust engineering solutions to your most demanding industrial fastening challenges.
